Repeater RIP 160 HE

Download PDF

Receiving data from RS232, RS485, RF 868 MHz.

Alphanumeric display to 5 characters / digits, height 160 mm, brightness automatically adjusted and suitable for external installation

Container in stainless steel and watertight logons.

Connects to all instruments of our production.

Configuration and customization protocol with PC software.

Download installation and usage manual

Zoom Click to enlarge image

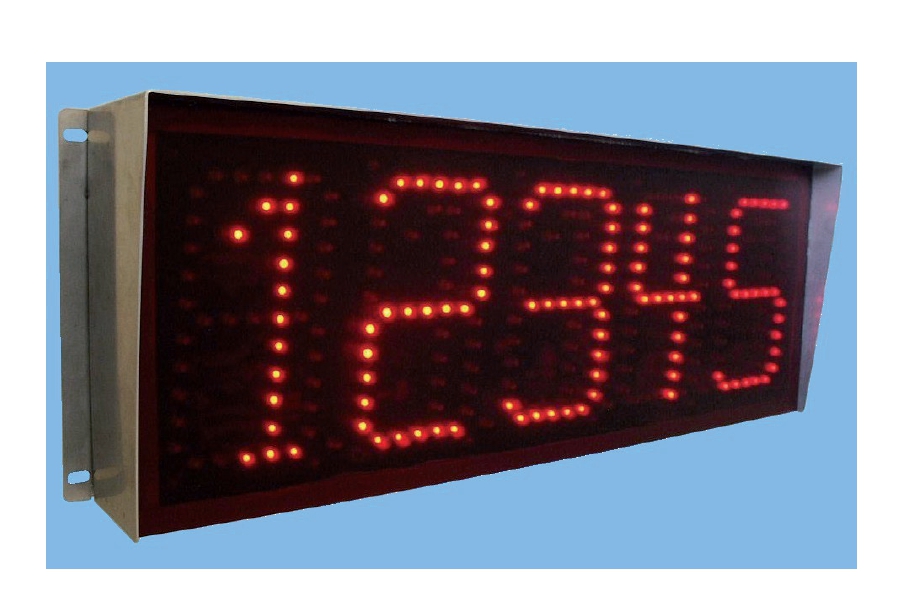

Repeater RIP 160 HE

Technical Specifications

Power supply100 - 240 V ac 50 / 60 Hz
Max power consumption25 VA
Operating temperature-10 / +40C (14 F / 104F) Humidity maximum 85% non-condensing
Storage temperature-20 / +50C (-4 / +122F)
DisplayAlphanumeric 5-digit dot matrix high-efficiency red LEDs with a wide viewing angle
 Reading distanceUp to 130 feet
 Display brightnessAnti-reflection filter and automatic brightness adjustment in ambient light function. Suitable for direct light installation
Overall dimensions656 x 230 x 110 mm / 25.8 x 9.1 x 4.3 in (l x h x p)
MountingWall-mounted with 4 external side holes 6,5 mm with center distance 635 x 195 mm (l x h)
Case materialStainless steel protected against dust
Protection levelIP 65
ConnectionsWaterproof circular connectors with conductor wiring with screw terminal
Communication portsRs232c / Rs485 standard
 Max. cable length15m (Rs232c) and 1000m (Rs485)
 Serial protocolsASCII + programmable custom protocols
 Baud rateFrom 1200 to 115200 selectable
 OptionsEthernet protocol and Profibus protocol
Optional interface RF 433 MHzCoupled operation with transmitter module to be combined with the transmitter weighing instrument
Num. RF ChannelsUp to 7 channels selectable on the 868 MHz band for installation of multiple systems in the same area
Average radius of coverage100 meters in free air
Conforms to standardsEN61000-6-2, EN61000-6-3, EN61010-1
For the complete and latest technical specifications, please refer to the technical data sheet which can be downloaded here:
Download PDF


TypeJ1 5 poles serial female
1GND + Shield
2RS232 Rx
3RS485 -
4RS485 +
5RS232 Tx
